FD38-391-Y04 (VG96940-06-F005B) | EMCA Electrically Conductive Gasket, Size 15/16

Quantity	10+	25+
Price	$22.38	$20.09

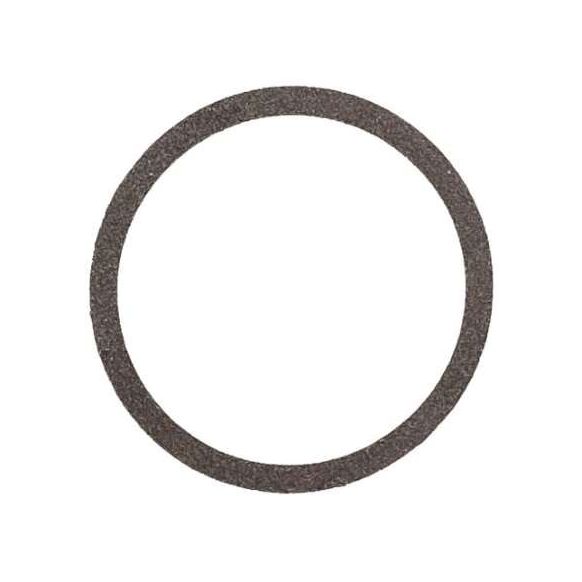

EMCA Jam Nut Mounting Electrically Conductive Gasket, Size 15/16, Fluor silicone with Ni/C conductive filler, Style F.

Manufacturer:

EMCA

Colour:

Dark-Grey

Connector Series:

MIL-DTL-38999/24, VG95319-1007, VG95319-1013, VG 96912-5, VG 95328-5

Shell Size:

15/16

Material:

Ni/C

Ambient Temperature Range:

-55 °C to 160 °C

Hardness:

(75 ±} 7) Shore A - DIN EN ISO 868

Shielding Effectiveness:

70 dB

Material Data

Weight:

3 grams

Commercial Data

Country of Origin

:

Germany

Tariff Number:

85389099

RoHS Compliant:

Yes

Specification

Need bulk stock or specific lead times? Get in touch below, and our specialist team will promptly provide you with availability, pricing, and delivery details tailored to your needs.

Complete the form below to request tailored information or a product sample to support your project needs.

EMCA Jam Nut Mounting Electrically Conductive Gasket, Size 15/16, Fluor silicone with Ni/C conductive filler, Style F - FD38-391-Y04 (VG96940-06-F005B)

Material Data

Commercial Data
